14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

Luogo di origine:

Hebei, Cina

Certificazione:

ISO9001

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Tipo di ugello:

Fisso

Mercato:

Globale

Vantaggio:

Durabilità e elevata efficienza

Dimensione del cono:

Varie dimensioni disponibili

IADC:

Sulla base della geologia

Tipo:

TCI o dente di acciaio

Tipo di cuscinetto:

Portamento del giornale

Termini di pagamento e spedizione

Prezzo

Negoziabile

Imballaggi particolari

Secondo le esigenze del cliente

Tempi di consegna

5-15 giorni lavorativi

Termini di pagamento

T/T

Capacità di alimentazione

50000 pezzi/mese

Prodotti correlati

Video

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

Ottieni il miglior prezzo

Video

374mm(14 3/4") TCI Rock Drilling Bit Tricone Hard Rock Drilling Bit For Water Well Drilling

Ottieni il miglior prezzo

Small Size Tricone Bit Package

Ottieni il miglior prezzo

20 pollici Tci Tricone Bit,IADC535 Tricone perforazione Bits Nuovo forgia acqua perforazione rotante

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

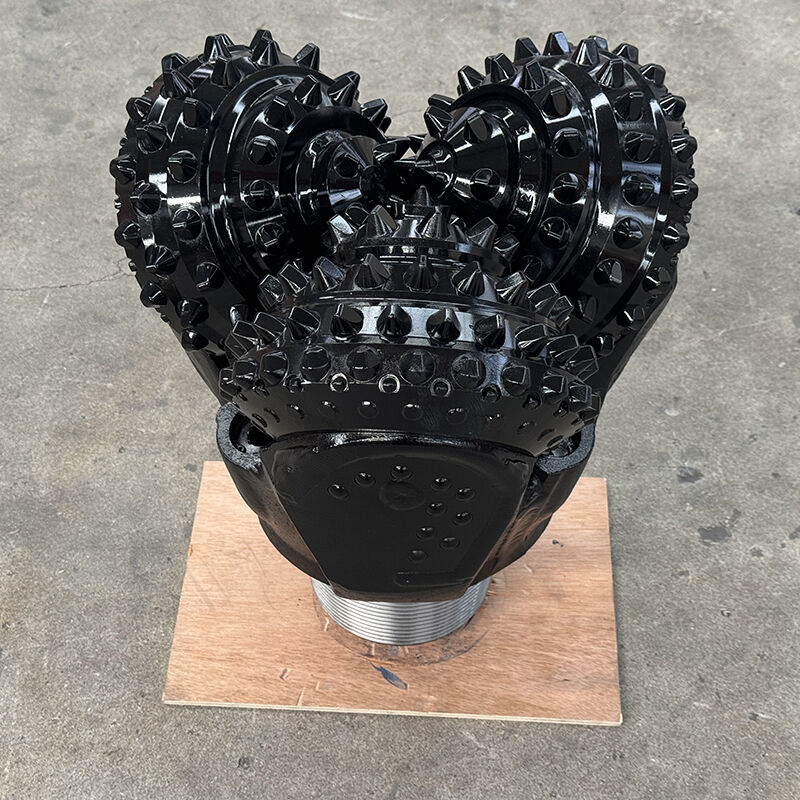

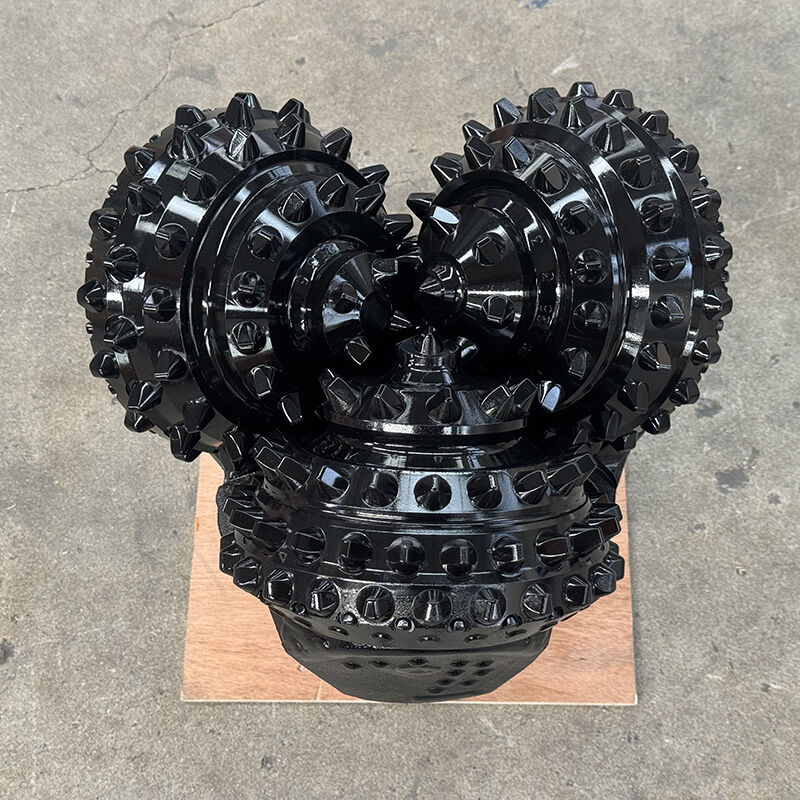

14 3/4”IADC 517 Tri-Cone Bit Tricone Bit Soft Rock Drilling Bits For Water Well Drilling

The three cone drill bit is a widely used core tool in petroleum drilling operations, and its performance directly affects drilling quality, efficiency, and cost. The drill bit structure consists of four main parts: the tooth palm body, the roller body, the bearing system, and the nozzle. According to the type of bearing, it can be divided into two categories: rolling bearings and sliding bearings, and according to the method of tooth fixation, it can be divided into two categories: hobbing and milling. It crushes rocks through the impact crushing effect and sliding shear effect generated by the revolution and rotation of the roller cone, and is suitable for various soft, medium, and hard strata. The International Association of Drilling Contractors (IADC) has developed a three digit coding standard for classification and selection based on tooth type, formation adaptability, and structural characteristics

PRODUCT SPECIFICATIONS
product name	14 3/4”IADC 517 Tri-Cone Bit
model number	CA535
series	CA
tooth type	TCI
connection	6 5/8" Reg PIN
Nozzle	three jet nozzles
application	Mining,water well,oil well,HDD,exploration,etc
weight	78kg
certificate	SY/T5164,ISO9001:2008
RECOMMENDED ROCK FORMATION
medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code	415	435	445	515,525	535,545	615,625	635,645	735,835
WOB(KN/mm)	0.35~0.90	0.35~0.95	0.35~1.00	0.35~1.05	0.35~1.05	0.35~1.05	0.70~1.20	0.70~1.20
RPM(r/min)	140~70	140~60	140~60	120~50	110~40	80~40	70~40	70~40
